Description
Since its inception, the Totem Wind has been appreciated for its avant-garde design and superior sonic architecture. Its complex cabinet geometry has masterfully made this dynamic, multi-driver speaker sound “Totem Great”.
A totally unique (4x) driver 3-way speaker system, the Wind stands for flexibility and truly full-range expressiveness. The multiple midranges allow for an incredible amount of musically informative material to transpire in space with ease. The sound level possibilities of this large dynamic system also facilitate large and complex musical demonstrations. Design and performance are brought forth in a flexible and manageable equilibrium. Also available in Design finish.
These magnificent loudspeakers are in-store purchase only, and are available by special order. Grills optional.

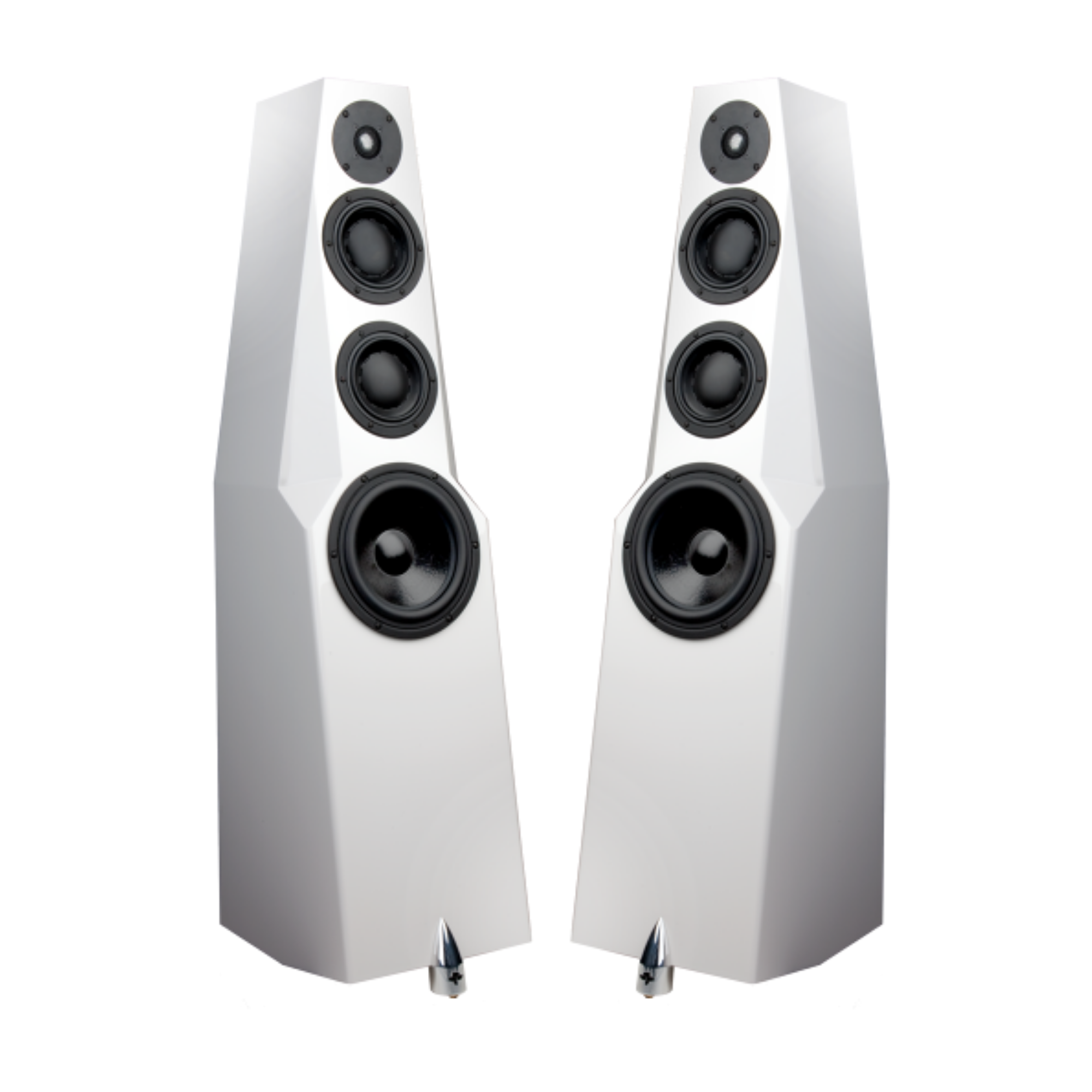

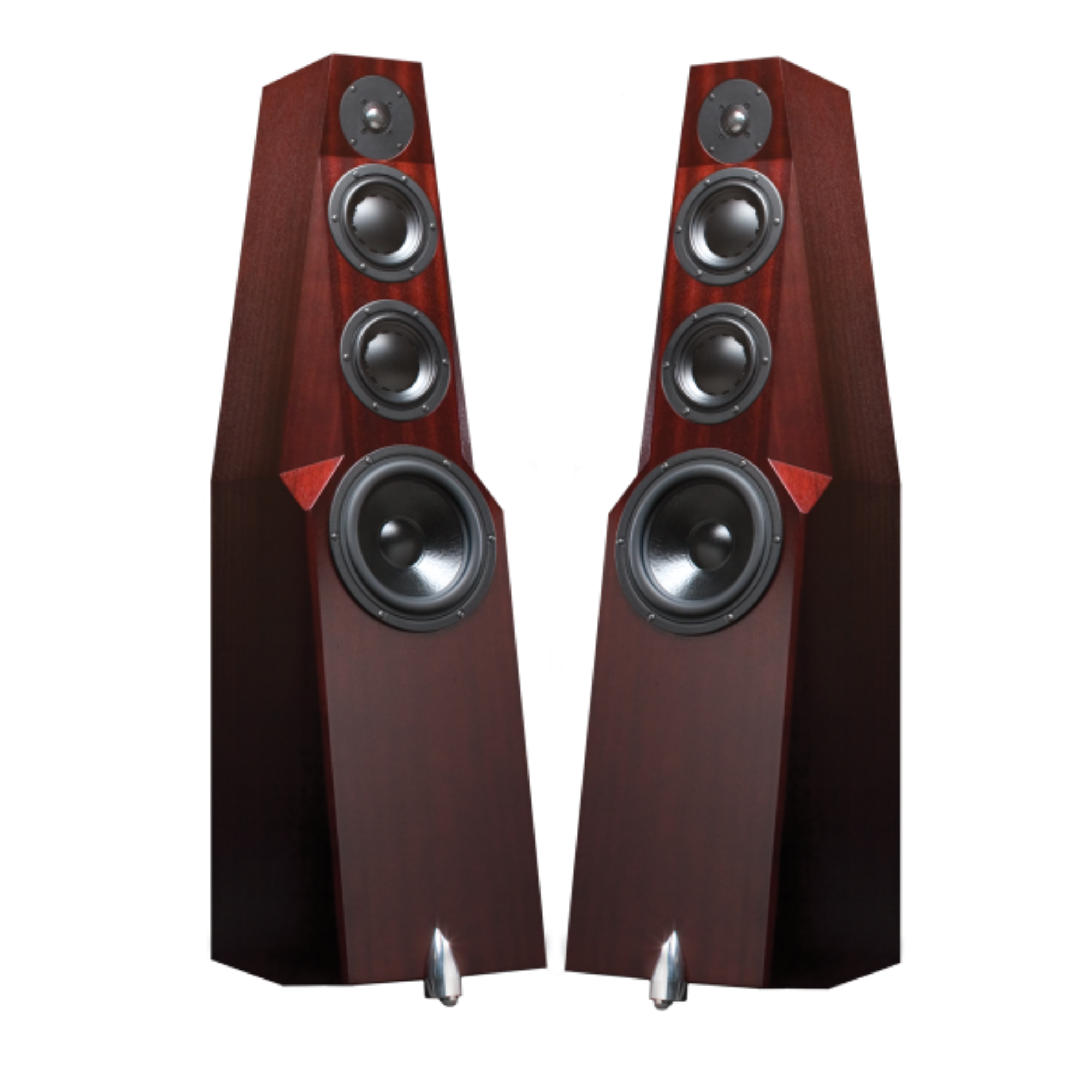

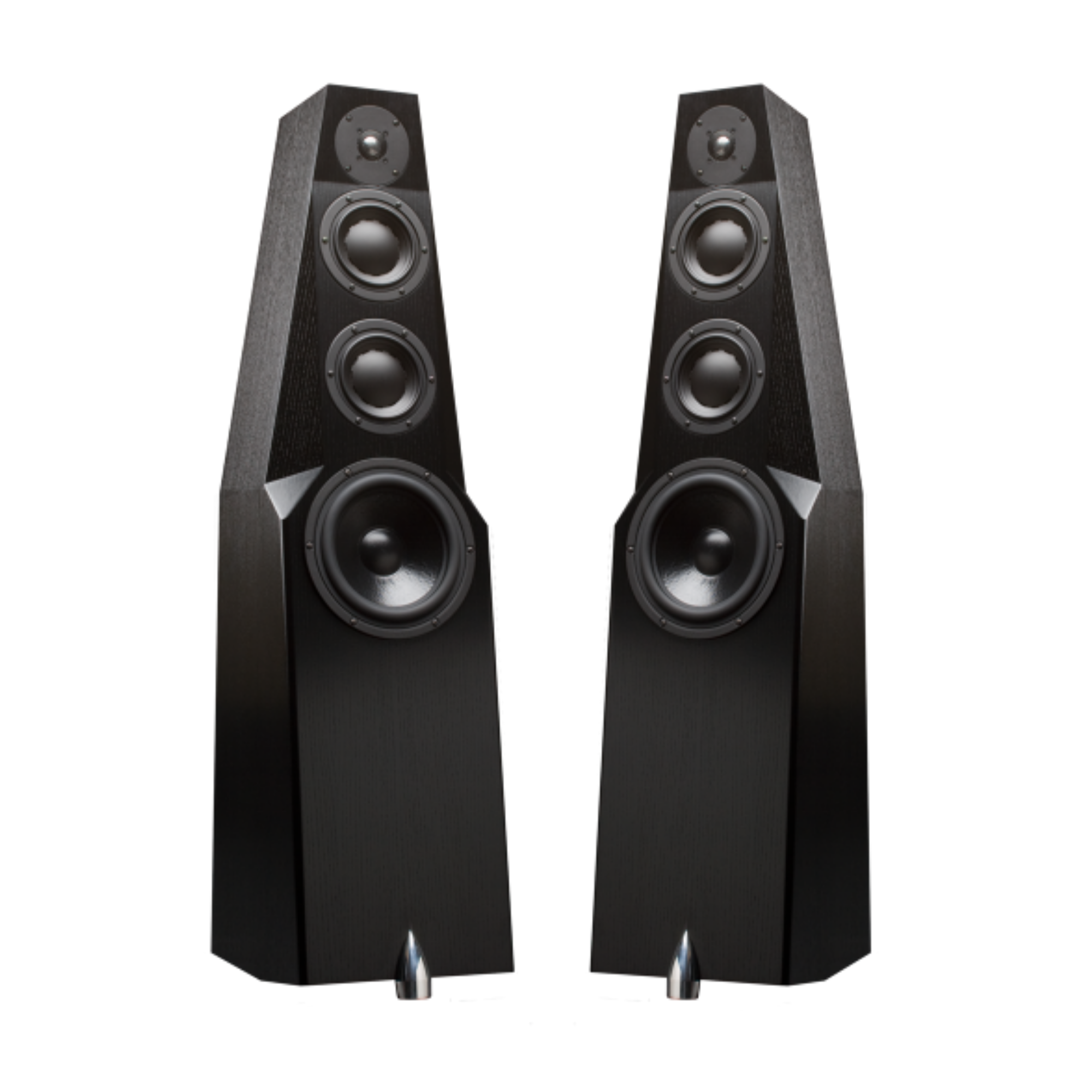

Finishes: Black Ash, Mahogany, Satin White
NOTE: Wind Design are available in Dusk and Ice at $19,000/pair. Please inquire.
Features
- Avant-garde design
- Superior sonic architecture
- Complex cabinet geometry
- Absolute surreal holographic imaging
- Available in exotic veneer finishes
Technical features
- Totally unique (4x) driver 3-way speaker system
- On- and off-axis point source imaging
- Specially damped, long-throw woofer
- Special low resonance tweeter with chamber
- Multiple midranges
- Extreme-quality hard-wired crossover
Specifications
| Frequency Response: | 24 Hz – 21 kHz ± 3 dB (in room) |
| Recommended Power: | 80 – 250 W |
| Woofer: | 8.5″ / 21.59 cm cast frame, specially damped. |
| Midrange | 2×5.5″ with 3″ / 7.62 cm voice coil. Cast frame. High power handling, wrap around neo magnet structure, accurate linear throw |
| Tweeter: | 1″ / 2.54 cm alloy dome flexible linear suspension, low resonance, chamber |
| Impedance: | 4 ohms |
| Sensitivity: | 87 dB |
| Dimensions (w x h x d): | 10.7″ x 44.3″ x 14″ / 27.18 x 112.522 x 35.56 cm (over max. size) |
| Placement from rear wall: | 3′ – 7′ / 91.44 – 213.36 cm |
| Placement distance apart: | 6′ – 14′ / 182.88 – 426.72 cm |
| Break-in Time: | 200 – 250 hours |
| Crossover Frequency: | Woofer to mids, 2nd order / 2nd order, mids to tweets 2nd order 2nd order |
| Speaker Terminals: | Bi-wireable, Gold WBT connectors |
| Weight | 74.8lb / 34kg |
