Description
The NAD Masters M66 BluOS Streaming DAC-Preamplifier is a revolutionary hi-fi component that combines an audiophile-grade DAC with a high-resolution multi-room music streamer. Featuring Dirac Live Room Correction and Dirac Live Bass Control, its elegant design and vibrant 7″ touchscreen exudes quality and class. Pair it with NAD’s M23 power amplifier for a stunning system that excels technologically, sonically, and visually.
The Masters M66 represents an entirely new class of hi-fi separate components. In addition to a plethora of inputs, including MM/MC phono and HDMI eARC, the M66 incorporates an audiophile-grade DAC and a high-resolution multi-room music streamer.
Along with the full-bandwidth version of Dirac Live Room Correction, the M66 features Dirac Live Bass Control, allowing independent control of each connected subwoofer, for smooth, consistent response throughout your listening room. The combination of Dirac Live Room Correction and Dirac Live Bass Control enables the M66 to deliver more accurate in-room performance than any two-channel component ever offered.
Features & Details*
• Ethernet and Wi-Fi networking
• BluOS network streamer provides access to over 20 streaming services, including several that deliver lossless and high-resolution audio
• Flagship ESS Sabre ES9038PRO DAC and ES9822PRO ADC chips
• Innovative Dynamic Digital Headroom (DDH) circuit eliminates digital intersample peak clipping distortion
• Full MQA hardware decoding and rendering
• Support for Apple AirPlay 2, Spotify Connect, Tidal Connect
• Seamless integration with smarthome control systems such as Crestron, Control4, ELAN, RTI, URC, Josh.ai and others
• Support for Amazon Alexa and Apple Siri voice control
• Dirac Live Room Correction
• Four balanced and four unbalanced subwoofer outputs
• Dirac Live Bass Control enables seamless blend between the subwoofer(s) and main speakers, and smooth bass response throughout the listening area
• Ultra-quiet MM/MC phono stage with precise RIAA equalization, high overload margins, and infrasonic filter
• HDMI port with eARC support
• Two optical and two coaxial S/PDIF inputs, one AES/EBU balanced digital input, two pairs of RCA line-level analogue inputs, one pair of XLR balanced inputs
• Dedicated headphone amplifier with low output impedance and very high output voltage capability
• Ultra-precise resistor-ladder digital volume control

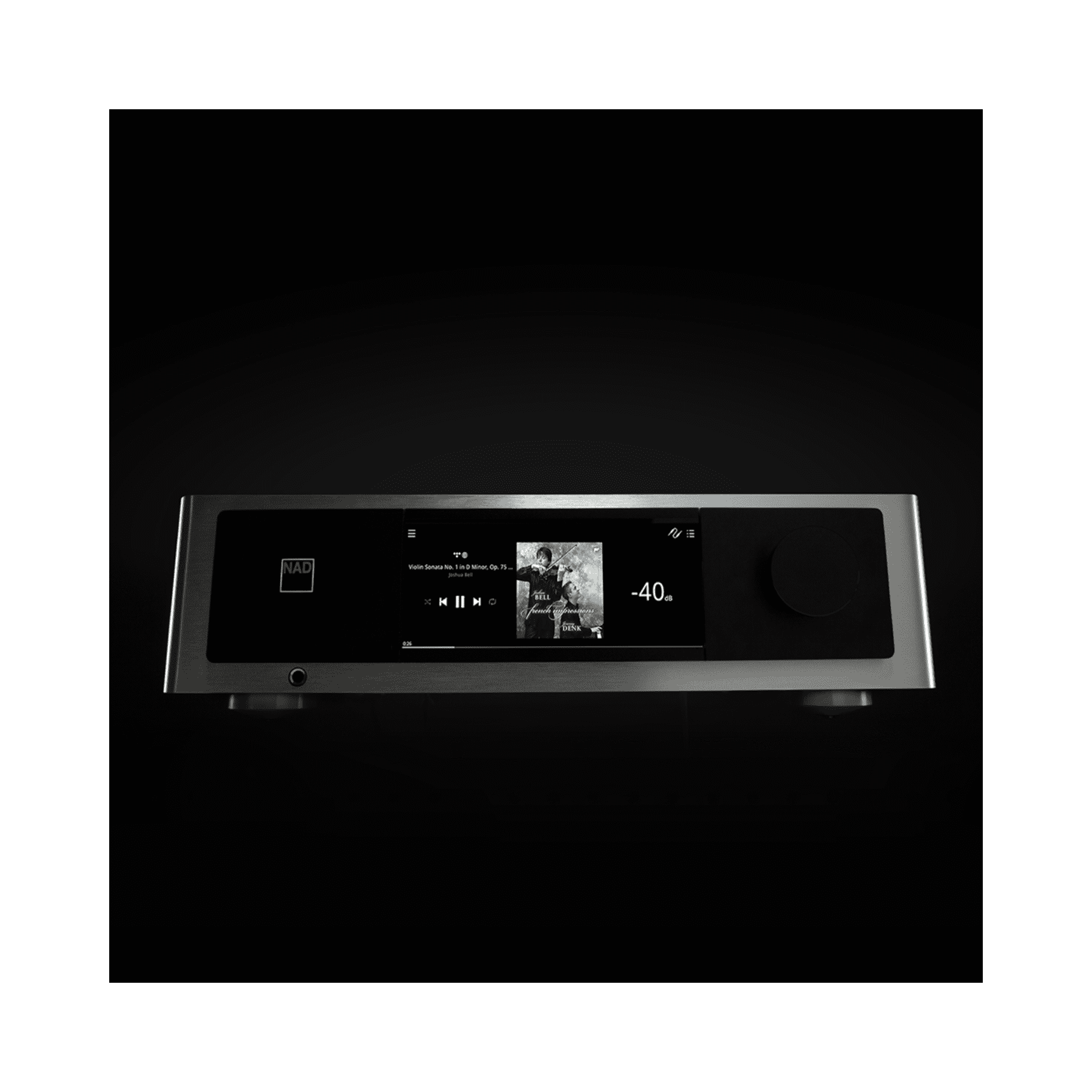

• 7″ front-panel touchscreen
• Elegant aluminium casework
• Two MDC2 expansion slots for adding future capabilities
• Premium IR remote control included
*all features and details listed are preliminary
Music Everywhere
Featuring a high-resolution network streamer based on the acclaimed BluOS multi-room music-management system, the M66 provides access to more than 20 streaming services, including several that offer lossless and high-resolution audio. Using the intuitive BluOS app on a smart device or personal computer, listeners can play music from their favourite streaming service, their personal music libraries, and thousands of Internet radio stations, in resolution up to 24-bit/192kHz. Like all BluOS-enabled components, the M66 has full MQA decoding and rendering capability.
Perfect Response
The M66 integrates Dirac Live Room Correction and Dirac Live Bass Control. Connect the supplied calibrated microphone to the M66’s USB port and then launch the Dirac Live app on a smart device or personal computer. The app will walk you through the calibration process, and then generate correction filters that compensate for acoustic problems like standing waves and unwanted reflections. You’ll enjoy more textured bass, improved tonal accuracy, vastly improved clarity, and more focused imaging.
Peak Performance
At the heart of the M66’s digital section are ESS Technology’s flagship Sabre DAC and ADC chips. These audiophile-grade designs are known for their exceptionally wide dynamic range, ultra-low noise and distortion, and outstanding time-domain performance.
Connect Everything
With its full suite of analogue and digital inputs, the M66 can accommodate all your source components. Vinyl fans will appreciate the M66’s ultra-quiet MM/MC phono stage, which features precise RIAA equalization, high overload margins, and an innovative circuit that suppresses the infrasonic noise that is always present with vinyl playback without affecting bass response. For TV and movie viewing, there’s an HDMI eARC port for connection to an HDTV. Other options include two coaxial and two optical S/PDIF inputs, an AES/EBU balanced digital input, two pairs of RCA line-level analogue inputs, and one pair of XLR balanced inputs.
