Description
The Bowers & Wilkins ASW610XP delivers the finishing touch to a hi-fi or home theatre system for larger rooms. Serious bass power is developed in a compact cabinet thanks to the unit’s amplifier, long-throw driver. The bass driver diaphragms are constructed from a rugged, finely tuned mix of paper pulp and resin, which provides the stiffness needed to withstand the tremendous physical forces exerted by the voice coil and pressures inside the cabinet.
Tuned for powerful bass
A big driver isn’t enough: ASW610XP’s combines paper pulp, Kevlar fibers and resin for stiffness and accuracy.
All the power you’ll need
ASW610XP may be compact, but it packs a gutsy 500W Class D amplifier designed for punch and cool operation.
SPECIFICATIONS
| SPEAKER TYPE | Active |
| SPEAKER DIAMETER | 10″ |
| CONTINUOUS POWER | 500 Watt |
| FREQUENCY RESPONSE | 18 – 140 Hz |
| FREQUENCY RESPONSE (-3DB) | 25 – 140 Hz |
| AMPLIFIER INPUT IMPEDANCE | 33 kOhm |
| SIGNAL-TO-NOISE RATIO | 90 dB |
| CROSSOVER FREQUENCY | 40 – 140Hz |
| AMPLIFIER | Integrated |

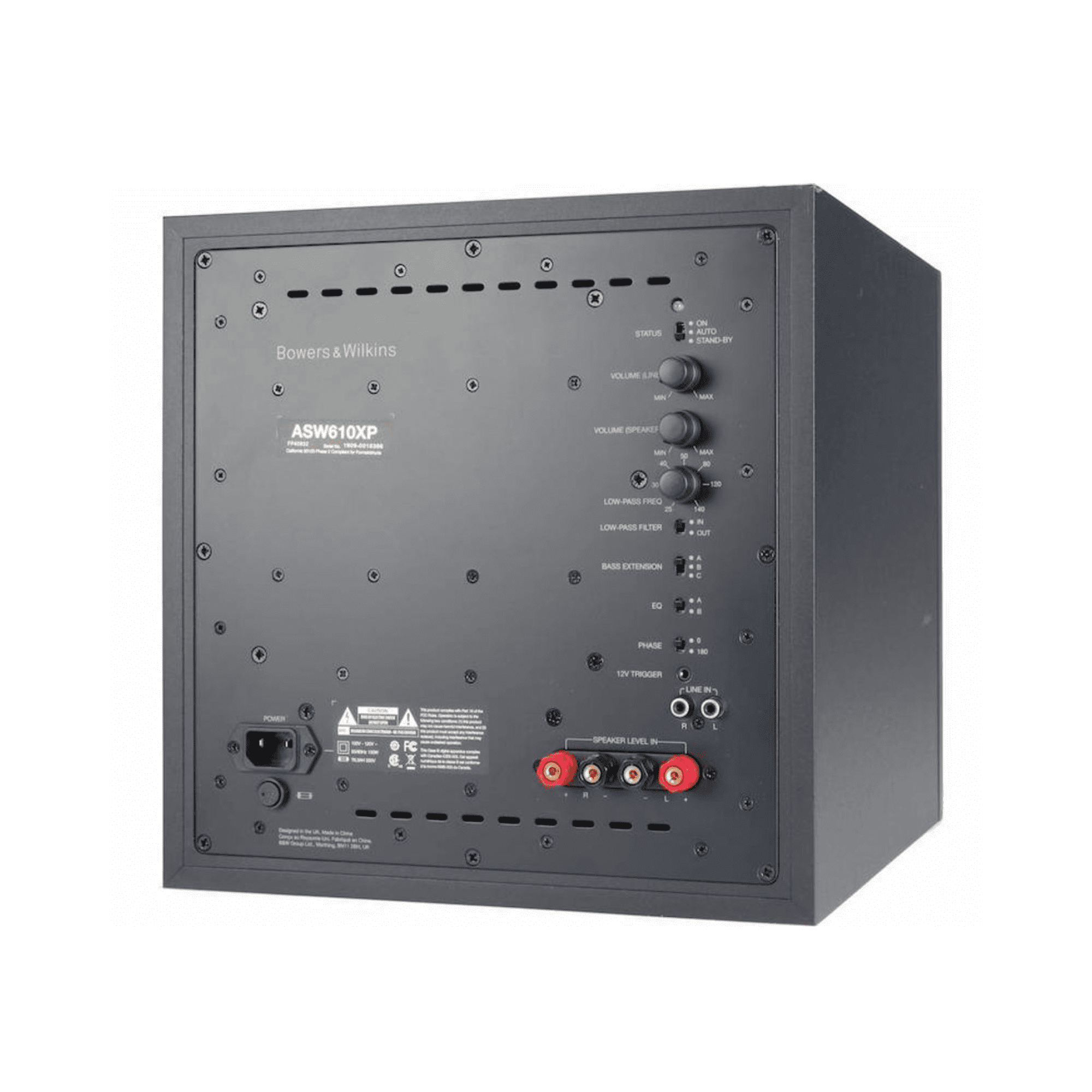

| CONTROLS | Subwoofer volume control, subwoofer phase, subwoofer cut frequency |
| DETACHABLE GRILLES | Yes |
| SPEAKER DETAILS | Speaker – subwoofer – 500 Watt – 18 – 140 Hz CFR – active |
| DRIVER DETAILS | Subwoofer: subwoofer driver – 10″ – paper/kevlar |
| CONNECTOR TYPE | Audio line-in (RCA x 2) 2 x speakers input (Binding Post) |
| POWER SOURCE | Integrated power supply |
| POWER CONSUMPTION OPERATIONAL | 98 Watt |
| WIDTH | 32.5 cm |
| DEPTH | 37.5 cm |
| HEIGHT | 32.5 cm |
| WEIGHT | 15.5 kg |
