Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series receivers are the foundation of the world’s most demanding home theatres. The new CINEMA40 by Marantz is a high power and high-performance AV receiver for multi-use rooms and dedicated home theatres alike. It features 9×125 watts of built-in legendary Marantz amplification, seven HDMI inputs each of which is 8K UHD compatible, HEOS® Built-in streaming, room correction with Audyssey MultEQ XT32, Dolby Atmos and DTS:X, Auro 3D, plus a multitude of inputs and outputs including pre-amp outs for all channels and four independent subwoofers.
Built in Japan, this prestigious AVR features a higher level of Marantz audio components and design: legendary HDAM-SA2 current feedback topology between preamp and power amp, a more powerful EI core transformer and audio capacitor, monolithic amplifier construction for ultra-low crosstalk and vibration, and an aluminum design with hidden display under the front panel door.
- 9.4 channel output allows variety of speaker layouts
- 125-watts-per-channel amplifier creates realistic dynamics
- Decodes Dolby Atmos, DTS:X audio, and Auro 3D
- Acoustic room tuning with Audyssey MultEQ XT 32
- Seven HDMI inputs (all 8K) and three outputs for highest-resolution video
- Wi-Fi and Bluetooth streaming from your favourite music sources
- Sound Master tuned for warm, rich, and detailed Marantz sound with Discrete Hyper Dynamic Amplifier Modules
- Beautiful design matches rich, warm sound
- Attractive new HD on-screen interface makes setup intuitive
- Pre-amp outputs for all channels enable amplifier upgrades
Performance The Marantz Sound Master meticulously tuned CINEMA40 for amazing performance with careful parts selection to create the Most Musical Sound in your home. Making sound the Marantz way is a seamless fusion of art and science, practised by artisanal creators who balance and select components individually for their sonic qualities — they are the Sound Masters. CINEMA40 is a state-of-the-art high-performance piece. The characteristic warm and dynamic Marantz sound is obvious upon first listen. Discrete Hyper Dynamic Amplifier Modules, current feedback amplification, and other technologies in CINEMA40 elevate the performance of your theatre well beyond expectations.
Customizability Thoughtfully selected connectivity options, flexible speaker arrangements, and fine-tuning ability allow you to make CINEMA40 your own. Your cinema is an integral part of your home. Therefore, Marantz has provided a rich assortment of connections and configuration options to make CINEMA40 your ideal piece. Tune your loudspeakers to perfection with the included Audyssey MultEQ XT32 making even challenging acoustic spaces ideal listening environments.

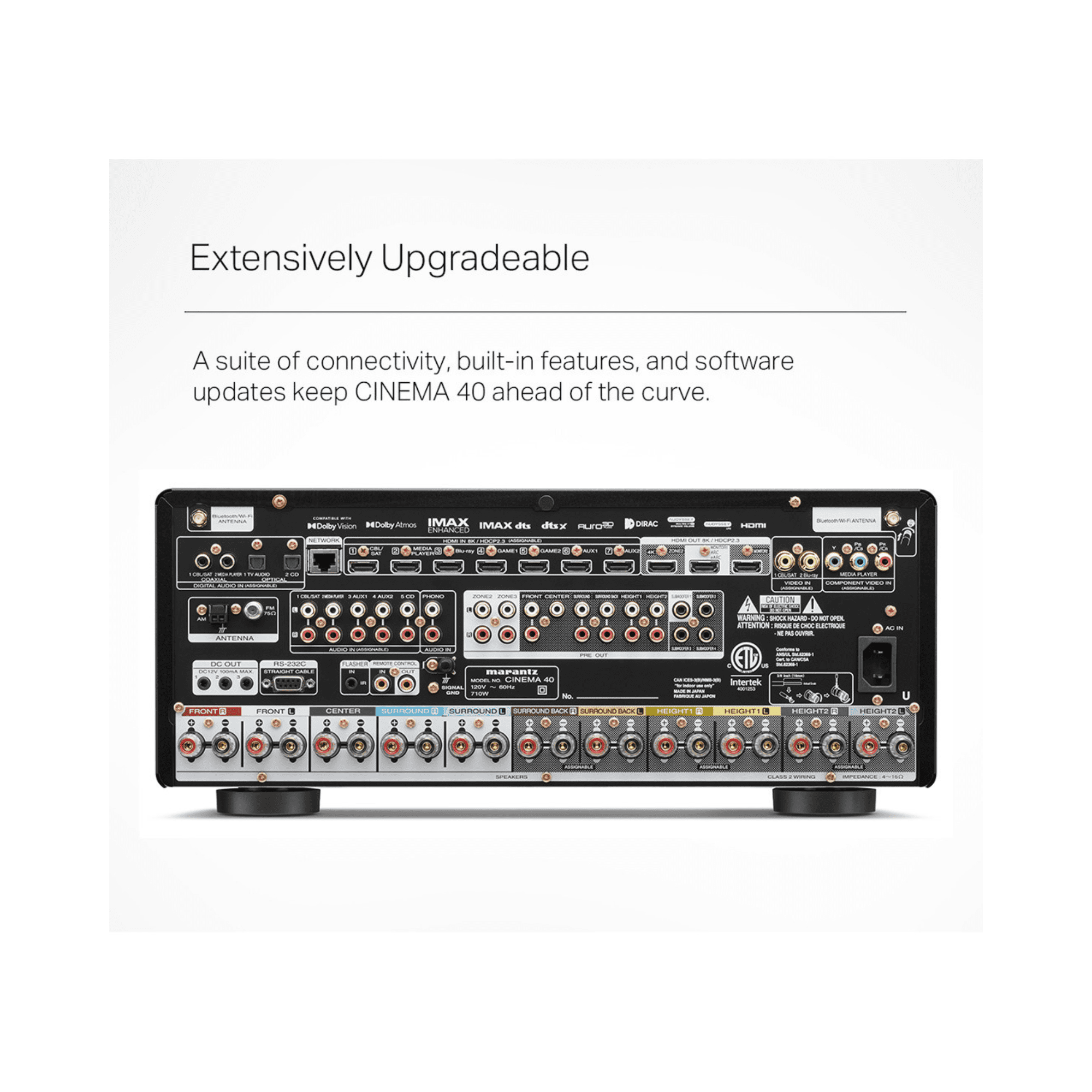

Upgradeability Extensive input and output options plus a powerful software ecosystem make CINEMA40 easy to upgrade as your home theatre grows. Home cinema is an investment in your own enjoyment and well-being. With its extensive connectivity and highly capable technological underpinning, you can add new components to expand your system for many years to come. 11.4 channel pre-amp outputs provide opportunities to expand your loudspeaker layout with outboard amplification.
Marantz HDAM-SA2 To preserve the detail, nuance, and essence of the music you love, Marantz developed Hyper Dynamic Amplifier Modules (HDAM) which are superior in their speed and response to off-the-shelf modules found in other products. HDAM design is unique and different to each Marantz product carefully designed by Marantz engineers and sound masters. CINEMA 40 leverages this unique Marantz innovation — in its superior Discrete version, beloved in the SR8015 — to ensure whatever you’re listening to is always the most musical.
Dolby Atmos® and Dolby Atmos Height Virtualization Technology Feel every dimension in Dolby Atmos®. Upgrade your home theatre with a 5.1.2 speaker setup, unleash a fully immersive 3D audio experience from Dobly Atmos content. Dolby Surround upmixer engages all speakers to create 3D audio sensation from legacy content. For those without 5.1.2 setup, Dolby Atmos Height Virtualization Technology creates the sensation of overhead sound only from 7.1, 5.1 or 2.1 speaker setup. You can also enjoy Dolby Atmos music tracks available from Apple Music, Amazon Music HD and TIDAL through a compatible streaming device.
DTS:X® and DTS Virtual:X DTS:X immersive audio content places sound where it would naturally occur in space, creating life- like, multi- dimensional audio. The DTS Neural:X upmixer offers improved immersion and heightened realism for legacy content. DTS Virtual:X provides immersive audio without height channels, creating virtual height effects in a 7.1, 5.1 or 2.1 speaker setup.
Auro-3D® Experience Putting you in a cocoon of life-like sound, Auro-3D® elevates the home theatre experience to amazing new levels by delivering the excitement of three- dimensional sound for music, games, broadcast, and films. The Auro-Matic up- mixing engine will enhance your existing audio-visual collection.
IMAX® Enhanced Get the most premium at-home entertainment experience with IMAX® Enhanced — the latest technology from DTS that sets a new standard for home theatre imaging, sound, scale, and clarity. Watch clearer pictures and brighter images. Feel immersive, heart- pounding audio and experience premium content digitally remastered by IMAX.
High-Resolution Audio Support Discover the incredible fidelity of Hi-Res Audio tracks with the ability to decode up to 24- bit/192-kHz ALAC, FLAC and WAV lossless files as well as DSD 2.8MHz and 5.6MHz tracks via the front panel USB port and network sources. You can also listen to other popular file types such as MP3.
HEOS® Built-in Multi-Room Streaming HEOS® Built-in technology lets you enjoy your favourite music in any room of your home for a wireless, whole-home audio experience. Play the same song in every room or select a different song for each connected room — the choice is yours. Enjoy music from Spotify, Amazon Music HD, TuneIn, SoundCloud, TIDAL, Napster, Deezer or your local music file libraries. With additional HEOS components, like HEOS-capable speakers, play all your music in one room or many. Roon Tested Subscribe to Roon to get more out of your digital music library with searchable, surfable information about your favourite artists and songs. Find lyrics, concert dates, photos, bios, reviews, and more.
Masterful 8K HDMI Connectivity The new Marantz CINEMA 40 includes seven HDMI inputs and three outputs for all your favourite sources. All inputs support 8K/60Hz or 4K/120Hz pass-through capability, 4:4:4 Pure Color sub-sampling, Dolby Vision, HLG, HDR10, and BT.2020 pass-through, and HDCP 2.3, the latest in copy protection standards, are supported on all HDMI inputs. Showcasing the latest HDMI technology and specifications, the new Cinema 40 lets you take your home entertainment up a notch with HDR10+, Dynamic HDR, ALLM, VRR, and QFT support. The video processor is also capable of upscaling your native video source up to 8K quality.
Bluetooth, Wi-Fi and AirPlay 2 Capability A dual antenna system lets you stream the most popular music services via Bluetooth, Wi-Fi, and AirPlay 2. Listen to your playlists on Spotify, Pandora, TuneIn, Deezer and more. Use AirPlay 2 to enjoy Apple Music with ease.
Multi-Source, Multi-Room Watch a movie in one room while another family member plays a song from Spotify in a different zone without interruption. Enjoy up to a 9.4 channel surround sound in the main room and a separate source or music stream in a second zone. Hook up a separate stereo amp and speakers to the second zone pre-out.
All Zone TV Audio Share the main zone TV audio to all your zones without losing fully discrete multi- channel playback in the main zone. Select “Source” for the second zone from the Marantz AVR Remote app so that main zone audio will not switch to stereo PCM.
Smart TV Connectivity Marantz CINEMA Series can be controlled with your Smart TV remote via the HDMI CEC functionality associated with your TV. Simply set “HDMI Control” to ON in your receiver, then set “Smart Menu” to ON and begin controlling the Marantz with your TV remote. The Smart Menu home screen offers quick access to source and surround mode selections, the AVR’s setup menu and four Smart Selects.
Marantz AVR Remote App The Marantz AVR Remote app for iOS and Android provides complete control over the latest Marantz network AV receivers and pre-amps. Use it to power on/off, adjust volume, input, and settings, or switch instantly to the HEOS® Built-in app.
Convenient Smart Select Functions The included remote has four Smart Select function buttons so you can store your preferred or frequently used settings and call them up easily on the fly — including input source, volume level, sound mode, and Audyssey configuration. With the push of a button, the Marantz instantly configures the receiver to your desired setting at any time.
Easy Setup Experience The included Quick Start Guide provides simple and direct instructions to get started. Once you connect your TV to CINEMA 60 via HDMI, the Marantz Setup Assistant appears on your TV screen and guides you through setup. The Setup Assistant helps you adjust crucial settings for the best possible sound quality, whatever your configuration.
Advanced Audyssey MultEQ XT32 Equipped with the full Audyssey suite of advanced DSP algorithms, the CINEMA 40 features Audyssey MultEQ XT32 automatic room acoustic correction. With the supplied measurement microphone, MultEQ XT32 analyzes each speaker’s output (including the subwoofers) at up to eight measurement locations and generates precision digital filters that optimize each channel for the correct frequency and time domain response. Audyssey Dynamic Volume smooths out disruptive jumps in volume (such as TV commercials), letting you listen at lower levels while still enjoying clear dialogue, music and sound. Audyssey Dynamic EQ provides full-range clarity at any listening level, and Audyssey Low Frequency Containment uses advanced psychoacoustic algorithms to deliver a full-range balance, including deep bass, without disturbing neighbours or people in other rooms of your home. Audyssey Sub EQ HT provides individual DSP tailoring of each subwoofer in a dual subwoofer setup for deeper bass with improved definition. Plus, the Audyssey MultEQ Editor app lets you view and adjust settings for detailed tuning and customize the sound more precisely to your room and tastes, and is available for purchase in iOS App and Google Play stores.
Dirac Live Optional Upgradability The interaction between your sound system and the physical layout of your room has a huge impact on sound quality. Dirac Live® Room Correction applies state-of-the- art, patented algorithms to analyze and digitally reduce room impact and enhance speaker performance. Dirac Live delivers a larger sweet spot, accurate staging, clarity, voice intelligibility, and a deeper, tighter bass not otherwise possible. Fully tuneable to your preference. Select Marantz AV receivers and AV preamplifiers support Dirac Live Upgradability. You can purchase a Dirac Live license key to unlock the functionality. Visit dirac.com for more information about Dirac Live. The upgradability will be supported via future firmware update.
External Control Capabilities Features IP control capabilities for easy customization and compatibility with third-party integration solutions. The Marantz CINEMA Series offers IP control capability for major third-party control devices, as well as Control4 SDPP (Simple Device Detection Protocol) certification for seamless integration with Control4 home automation equipment. IR (infrared) remote control input and output are included on the rear panel for remote control compatibility with other components in your home theatre system.
Pre-Amplifier Mode With Pre-Amplifier Mode, your receiver works as a perfect 11.4 channel AV preamplifier with the latest HDMI connectivity. Pre-Amplifier Mode provides a cleaner signal path and more tolerance in clipping level by disconnecting internal amplifiers. The receiver features 11.4 channel preouts. You can also disconnect only selected speaker channels so that you can use receiver’s built-in amplification to drive non-critical channels, yet getting cleaner signal path for the channels driven by external amplification such as Front L+R. Enjoy the best of the both worlds.
Phono Input for Turntables With the built-in phono EQ, you can connect your turntable directly to the AV receiver’s MM phono inputs and play vinyl records. Enjoy your vintage collection with exceptional quality and sound.
4 Independent Subwoofer Outputs Immerse yourself in evenly distributed, accurate bass. Featuring up to four subwoofer outputs to smooth out low frequencies and provide better dispersion. No audible peaks or dips — just powerful, room-filling bass.
Two Subwoofer Modes Giving you even more freedom to tweak your subwoofer settings to your preference when you are connecting more than 2 subwoofers. Select “Standard” if you want evenly distributed bass performance equally throughout the room. Audyssey sub EQ HT will be engaged to provide a global filter to all subwoofers and will give you broader sweet spot in the room. Select “Directional” if you want more directional bass performance seamlessly integrated into each speaker channel closest to each subwoofer. Bass feels different depending on where you sit in the room.
MPEG-H MPEG-H is a 3D immersive audio coding standard developed by the ISO/IEC Moving Picture Experts Group (MPEG) and Fraunhofer IIS for broadcasting content, currently available in Korea, China and Brazil. MPEG-H decoding is supported globally for select Marantz AV receivers and AV preamplifiers.
360 Reality Audio Immerse yourself in sound all around you. As real as if you are there at a live concert or with the artist recording in a studio. With 360 Reality Audio, music has never been so immersive and so real. Select Marantz AV receivers and AV preamplifiers are capable of 360 Reality Audio playback by connecting a Google Chromecast device to the AV receiver via HDMI. Currently, casting of 360 Reality Audio content from music streaming services are not yet available; stay tuned for further updates.
Back-lit Remote The receiver comes with a backlit remote to help you control the receiver in a dark theatre setting so that the entire experience will not be stopped or disturbed by just controlling the receiver.
